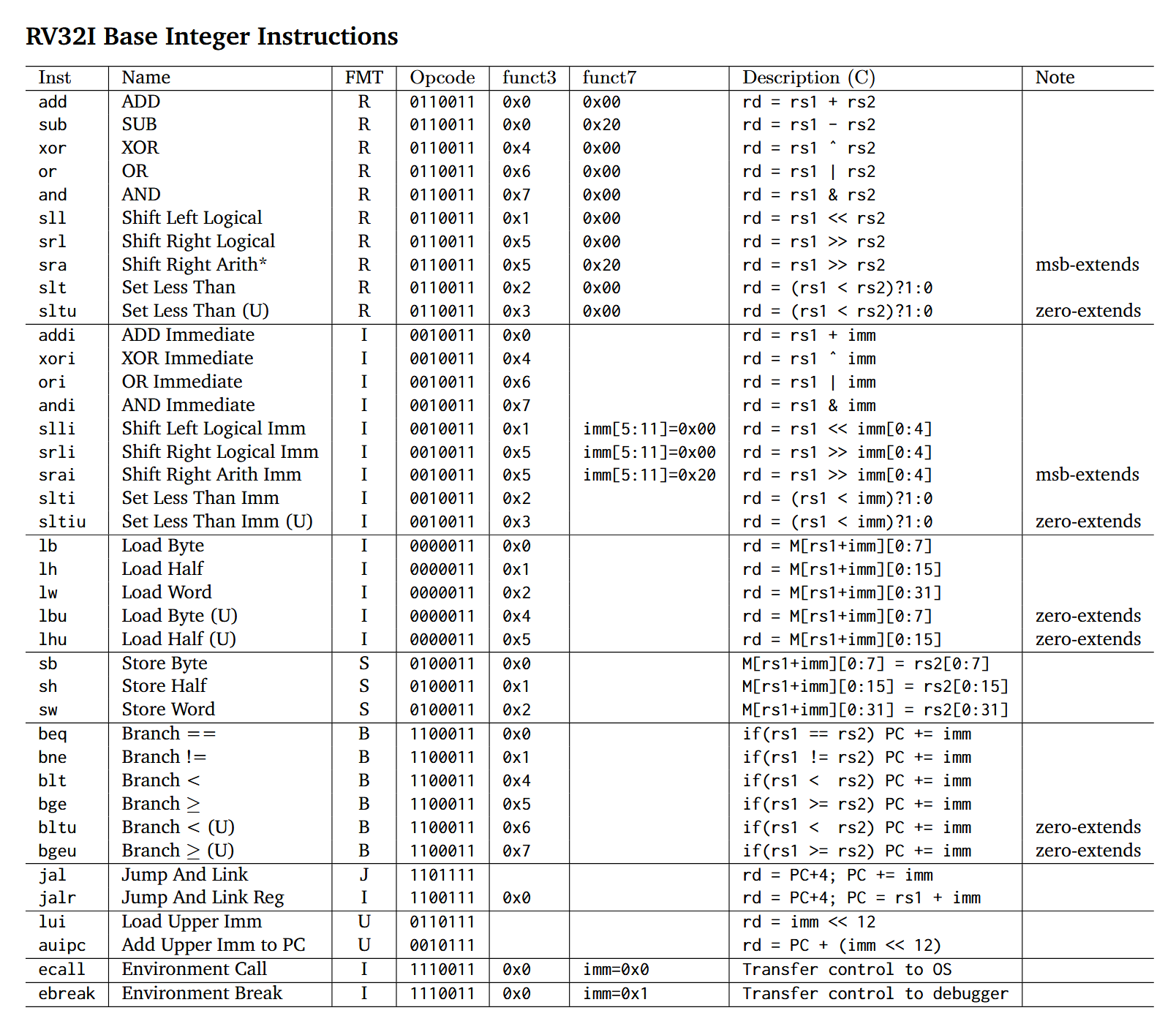

Base Intructions

Header	Meaning & Role	Driven by / Used by
FMT	Instruction format (R, I, S, B, U, J) — defines how the bits of the instruction are sliced.	Decoding is done by Control Unit, Immediate Generator, and the Instruction Memory provides the raw instruction.
Opcode	Bits [6:0] of the instruction, identifies instruction class (e.g., ALU ops, load, branch).	Control Unit receives this; determines instruction type, selects control signals.
funct3	Bits [14:12], sub-function selector within opcode class (e.g., add vs. slt vs. and).	Control Unit uses this for fine control, ALU Control uses this to select exact ALU operation.
funct7	Bits [31:25], sometimes used for further operation decoding (e.g., distinguishing ADD from SUB).	ALU Control examines this along with funct3 for ALU selection; sourced from Instruction Memory.

Field	Driven By	Received/Used By
Opcode	Instruction Memory	Control Unit
funct3	Instruction Memory	Control Unit, ALU Control
funct7	Instruction Memory	ALU Control
rs1/rs2/rd	Instruction Memory	RegFile, ALU
imm[x:y]	Immediate Generator	ALU, Branch Comparator, etc.
PC	PC Unit	Instruction Memory, Adder, Branch Comparator, etc.

Diagram

  ---

title: RV32I Instruction Class Diagram

---

classDiagram



    note for ArithmeticLogic "R-type & I-type ALU ops"

    class ArithmeticLogic {

        +add()

        +sub()

        +xor()

        +or()

        +and()

        +sll()

        +srl()

        +sra()

        +slt()

        +sltu()

        +addi()

        +xori()

        +ori()

        +andi()

        +slli()

        +srli()

        +srai()

        +slti()

        +sltiu()

    }



    note for Load "I-type loads (sign/zero extends)"

    class Load {

        +lb()

        +lh()

        +lw()

        +lbu()

        +lhu()

    }



    note for Store "S-type stores"

    class Store {

        +sb()

        +sh()

        +sw()

    }



    note for Branch "B-type conditional branches"

    class Branch {

        +beq()

        +bne()

        +blt()

        +bge()

        +bltu()

        +bgeu()

    }



    note for JumpAndLink "J- and I-type jumps"

    class JumpAndLink {

        +jal()

        +jalr()

    }



    note for UpperImmediate "U-type upper immediates"

    class UpperImmediate {

        +lui()

        +auipc()

    }



    note for System "I-type system control"

    class System {

        +ecall()

        +ebreak()

    }

Quick Example

Instruction: add

FMT: R — R-type
Opcode: 0110011
funct3: 000
funct7: 0000000
Description: rd = rs1 + rs2

Components Involved:

Instruction Memory: Provides raw 32-bit instruction.
Control Unit: Decodes opcode, recognizes R-type.
RegFile: Supplies rs1 and rs2 data, writes result to rd.
ALU Control: Looks at funct3 & funct7 to select “add” operation.
ALU: Executes the addition.
